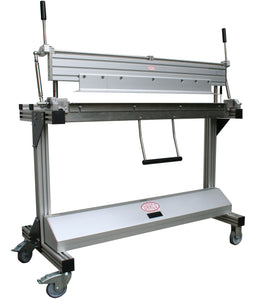

Draco K1-AGNU-3 - Hand Operated Detail Folding Brake with Frame

  • $7,950.00
    Unit price per
Shipping calculated at checkout.


Characteristics:
  • ideal for roof and wall cladding
  • solves all technical bending problems
  • clamping of sheet metal with eccentrics and hand lever
  • gas-pressure spring counterbalances top clamping bar
  • bending possible in all technical directions for roof and wall claddings
  • brake can also be screwed on to a working bench
  • brake removable from frame, for easy transport to the roof
  • all parts used on the brake are made of rustproof materials.

Technical data:

  • working width  = 1120 mm
  • weight  = 80 kg only

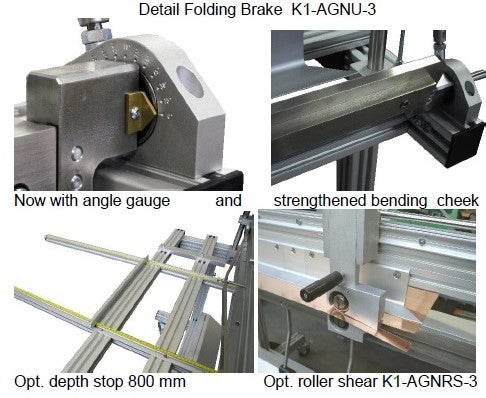

  • Opening of top clamping bar 60 mm
  • Aluminium, Copper, Lead, Zinc 0,8 mm
  • Stainless steel 0,5 mm

Standard-Equipment:

  • segments for top clamping bar 560 / 202 R / 202 L / 102 / 127 / 76 / 52 mm
  • assortment for bottom bending bar 1120 / 520 / 445 / 290 mm.
  • frame with 4 castors
  • allen wrenches
  • straight fence
  • angle fence
  • metal box for safe storage of parts and tools

Youtube Video Instructions
